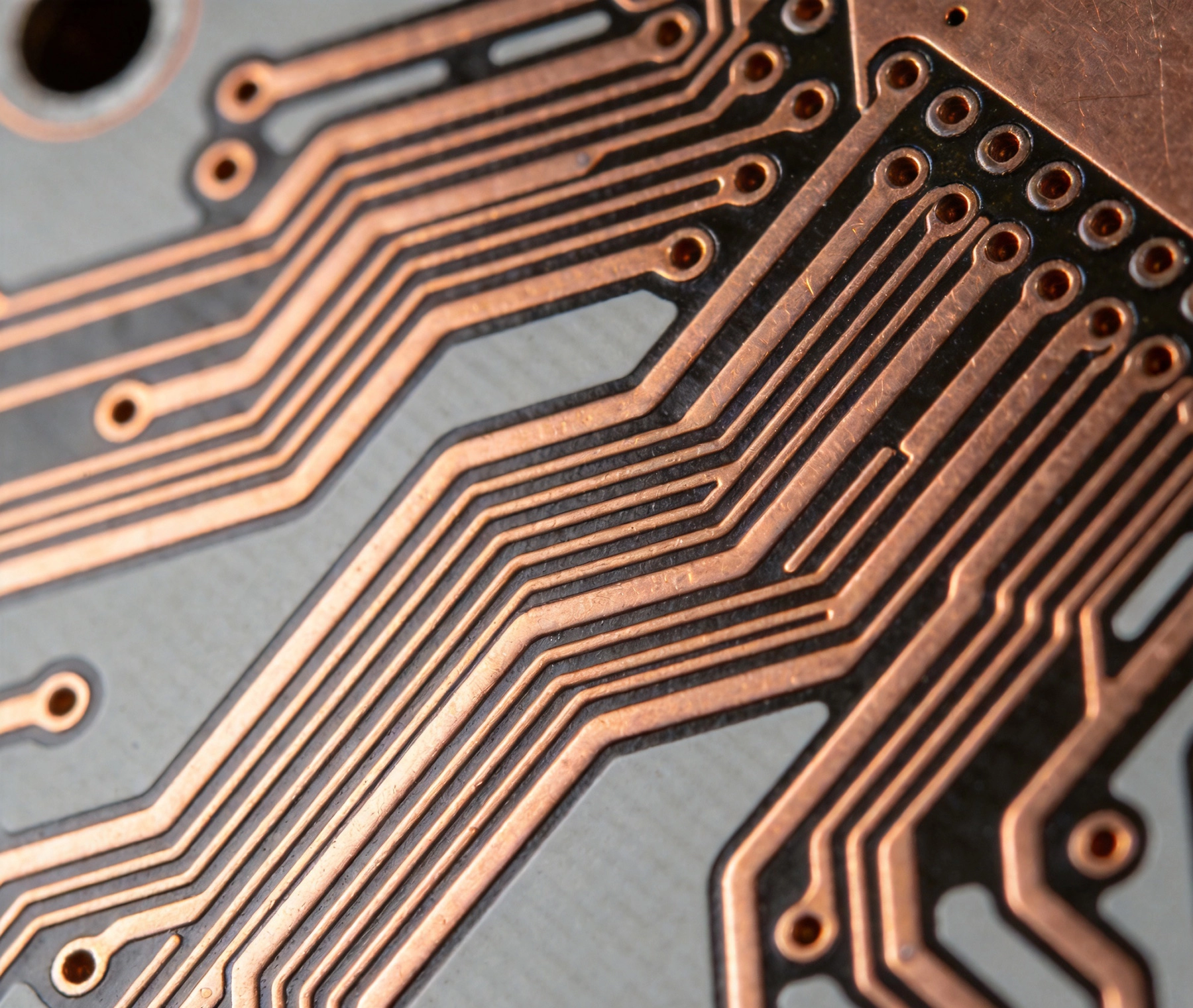

Trace width and spacing decisions in Pcb Design carry consequences that extend far beyond electrical performance. These fundamental parameters affect manufacturing yield, assembly reliability, and ultimately the cost of every board produced. Yet many engineers approach trace specifications with simplified rules that ignore the complex interactions between design intent, fabrication capability, and field reliability. Mastering trace width and spacing optimization requires understanding how these decisions ripple through the entire production process.
Design For Manufacturing principles provide the framework for making trace width and spacing decisions that balance electrical requirements against producibility. The goal isn't simply to specify the tightest dimensions technology allows—it's to select values that fabricators can produce consistently at yields that make production economical. This guide examines the factors that influence optimal trace specifications and provides practical guidance for Industrial Pcb designs that achieve both electrical performance and manufacturing success.
Understanding what fabrication processes can actually achieve provides the foundation for informed trace specification. Capabilities vary between manufacturers and equipment generations, but general principles apply across the industry.
PCB fabrication involves subtractive processes that introduce dimensional variation. Etching—the process that removes unwanted copper to form traces—creates trace width variations that depend on copper thickness, etch uniformity, and panel location. Understanding these variations helps designers specify tolerances that fabricators can achieve reliably.
Typical trace width tolerance for standard fabrication is approximately plus or minus 20% of target width, though tight-tolerance processes can achieve plus or minus 10%. Wider traces tolerate larger absolute variations, so a 0.3mm trace might vary by 0.06mm while a 1.0mm trace might vary by 0.2mm. When trace width affects critical parameters like impedance, designers must account for this variation in their tolerance budget.
Trace spacing faces different challenges than width. Spacing variation arises from pattern registration—how accurately the inner layer images align with through-hole locations and other features. Registration tolerances typically range from 0.05mm for advanced processes to 0.15mm for standard fabrication. When traces must maintain specific spacing to Ground planes or other references, this registration uncertainty affects achievable spacing.
Etch factor—the relationship between trace top width and bottom width due to side etching—also affects spacing. Traces narrower at the bottom create spacing that appears larger at the surface but measures smaller at the base. For critical spacing applications, designers should understand how specific fabricators' processes affect the geometry that matters for their application.
Through-hole plating creates additional constraints for trace routing near drill holes. The plating process requires adequate copper land around drill holes to achieve reliable barrel plating. Minimum annular ring requirements—typically 0.15mm to 0.25mm depending on technology level—define how closely traces can approach drill holes. Traces too close to holes may have copper thinned during drilling or plating, affecting reliability.
Aspect ratio—the ratio of board thickness to drill diameter—affects plating quality in through-holes. Higher aspect ratios challenge plating uniformity, potentially creating thin plating in hole barrels. While this doesn't directly affect trace dimensions, it constrains routing density in thick boards where small drill sizes create high aspect ratios.
Electrical performance often drives trace width and spacing decisions. Understanding these requirements—and how they interact with manufacturing realities—enables optimization that satisfies both constraints.
Trace current capacity depends on temperature rise above ambient, copper cross-sectional area, and acceptable conductor reliability. Wider traces with more copper cross-section carry more current without excessive heating. The IPC-2152 standard provides guidance for current capacity, but real-world application involves trade-offs between trace width, temperature rise, and available board space.
For high-current applications, designers often specify wider traces than minimum manufacturing capability allows. This approach provides margin for tolerance variation—if traces might narrow by 20% during fabrication, starting wider ensures minimum acceptable cross-section after variation. Temperature rise calculations should include worst-case current and ambient conditions, not just nominal operating parameters.
Controlled Impedance traces require precise width control to achieve target impedance values. Variation in trace width translates directly to impedance variation—typically 1-2% impedance change per 1% width change for Microstrip traces. Designers specifying impedance tolerance must account for fabrication width variation in their tolerance budget.
Trace thickness affects impedance similarly to width, yet thickness variation is often ignored in tolerance calculations. Copper plating adds thickness that varies with plating parameters and panel location. Total copper thickness—including base copper and plating—may vary by 20-30% across a panel, creating impedance variation that designers must consider when specifying tight impedance tolerances.
Spacing between conductors must prevent voltage breakdown under operating conditions and environmental stress. Creepage distance—the shortest path along surfaces between conductors—determines resistance to surface contamination and moisture. Clearance distance—the shortest direct path through air between conductors—determines breakdown voltage in clean conditions.
Industrial applications often require spacing that exceeds minimum manufacturing capability to ensure safety margin against contamination, humidity, and voltage transients. Designers should consider the complete environmental envelope—temperature cycling, humidity exposure, contamination potential—when specifying spacing that ensures reliable isolation throughout product lifetime.
Effective trace width and spacing specifications emerge from systematic analysis of electrical requirements, manufacturing capabilities, and reliability expectations.
Technology selection begins with understanding fabrication partner capabilities. Designers should work with potential manufacturers to identify achievable trace widths, spacing, and tolerances for their specific requirements. Standard technology—typically 0.15mm lines and spaces—offers lowest cost and highest reliability. Advanced technology—down to 0.1mm or tighter—increases cost and requires more careful process control.
The decision between technology levels should consider total board complexity, not just individual trace requirements. Boards requiring fine traces for impedance control often also need fine spacing for routing density. Specifying a technology level that meets all requirements simplifies manufacturing and improves yield compared to mixing technologies on a single board.
Tolerance specification requires balancing manufacturing achievability against design needs. Tighter tolerances increase cost by requiring more careful process control and potentially reducing yield. Designers should specify the loosest tolerances that meet electrical and reliability requirements rather than defaulting to the tightest technology allows.
For traces where absolute width doesn't affect performance—power distribution traces above minimum width, for example—specifying nominal dimensions without tight tolerance requirements reduces manufacturing cost without functional impact. Reserve tight tolerances for traces where width variation affects electrical parameters like impedance.
Different board layers often face different constraints. Outer layers—exposed to assembly processes and environment—may need different spacing than inner layers. Power and ground planes can use different geometries than signal routing layers. Specifying requirements by layer type rather than assuming uniform constraints throughout the board enables optimization that standard rules cannot achieve.
Blind and Buried Via requirements affect inner layer routing density. Layers with many vias may require wider spacing to accommodate routing around via capture pads. Planning layer assignments early—assigning high-density routing to layers with fewer constraints—optimizes overall board utilization.
Design decisions directly affect manufacturing yield, which ultimately determines production cost and schedule reliability.
Trace-related yield losses stem from several mechanisms. Traces too narrow after etching fail to meet minimum width requirements. Spacing violations—traces closer than specification allows—create potential reliability concerns. Impedance out-of-tolerance traces affect electrical performance. Each yield loss mechanism has root causes that design choices can either mitigate or exacerbate.
Designers who understand yield drivers make better specification decisions. If minimum width traces lose yield due to over-etching, specifying wider nominal values or looser tolerances improves yield. If spacing violations reflect registration uncertainty, adjusting routing to provide additional margin prevents violations. This proactive approach reduces manufacturing problems before designs reach production.
Design rule checking verifies that layouts meet specified constraints before submission to fabrication. Comprehensive DRC catches spacing violations, minimum width failures, and other constraint violations that would cause manufacturing problems. Running DRC early and frequently during layout—rather than only before submission—enables iterative correction that prevents accumulated violations.
DRC rules should reflect actual fabrication capabilities and electrical requirements, not arbitrary values. Rules that are too tight create false violations that waste engineering time investigating non-issues. Rules that are too loose allow violations that cause manufacturing problems. Establishing appropriate rules through collaboration between design and manufacturing engineering optimizes both quality and efficiency.
Trace width and spacing affect testability. Dense routing may not provide probe access for in-circuit testing. Fine spacing may create shorting risk during probe contact. Test point placement requires adequate clearance for probe landing that routing must accommodate.
Designing test access into layouts from the beginning—rather than retrofitting Test Points into completed designs—avoids compromising routing or creating manufacturing complications. Test engineers should participate in design rule development to ensure testability requirements integrate with routing constraints.
High-speed and high-frequency designs require specialized attention to trace geometry beyond basic manufacturing constraints.
Differential Pairs require consistent spacing between traces to maintain differential impedance. Variation in trace spacing—due to manufacturing tolerance or routing geometry—creates common-mode imbalance that degrades signal quality. Designers specifying differential pair spacing must account for both the nominal value and acceptable variation.
Matched-length routing for Differential Pairs introduces additional manufacturing considerations. Serpentine routing for length matching creates geometries with different spacing characteristics than straight sections. These variations affect differential impedance in the matched sections. Simulation should model actual routing geometry, not simplified straight-line approximations.
Signal traces require return paths that affect trace geometry decisions. Traces over continuous ground planes have predictable Controlled Impedance determined by trace width and dielectric thickness. Traces crossing splits or gaps in reference planes create impedance discontinuities that affect signal quality.
Spacing from reference plane edges—particularly important for controlled impedance traces—affects impedance value. Designers specifying trace geometry for impedance control must consider reference plane geometry in addition to trace dimensions themselves. Field solver tools that model actual geometry provide accurate predictions that simplified formulas cannot match.
Parallel traces couple electromagnetically, creating crosstalk that affects signal quality. Spacing between traces determines coupling magnitude—wider spacing reduces crosstalk but consumes more board area. For sensitive nets, designers must balance spacing against routing density while ensuring crosstalk remains below acceptable limits.
Crosstalk analysis should consider victim and aggressor net assignments based on actual signal characteristics. Nets with fast edge rates couple more strongly than slow signals of the same amplitude. Identifying high-coupling-risk pairs early enables appropriate spacing allocation that prevents crosstalk problems in finished products.
Translating design principles into practical specifications requires systematic approaches that ensure consistency and manufacturability.
Establishing standard design rules for organization-wide use ensures consistency across projects and designs. Standard rules should reflect actual fabrication capabilities, tested through production experience. Rules that no manufacturer can achieve consistently add cost without benefit. Rules looser than necessary consume board area without reliability improvement.
Standard rules should include technology-specific variants for different fabricators or technology levels. A single set of rules cannot optimally serve all manufacturing scenarios. Establishing rules for standard, advanced, and high-reliability applications—with clear criteria for when each applies—enables appropriate design for each project's requirements.
Design documentation should communicate trace requirements clearly to fabrication partners. Stating requirements explicitly—trace width, spacing, tolerance, layer assignments—prevents misunderstanding that causes manufacturing problems. Ambiguous specifications invite interpretation that may not match designer intent.
Impedance requirements deserve particular documentation attention. Designers should specify target impedance, tolerance, measurement method, and test coupon location. These details enable fabricators to design stack-ups and processes that meet requirements rather than guessing at intent.
New designs or modified rules warrant prototype validation before production commitment. Fabricating prototype boards and measuring actual trace dimensions, impedance values, and spacing provides verification that calculations and simulations predict actual performance. Discrepancies between predicted and measured values inform rule refinement.
Statistical sampling of prototype boards—measuring multiple samples across panel locations—reveals variation that single-board prototypes cannot detect. Understanding variation magnitude and distribution enables appropriate tolerance specification that accounts for actual process capabilities.
Understanding common trace width and spacing errors helps designers avoid similar problems in their own work.
Designing all traces at minimum dimensions—without considering actual electrical requirements—creates manufacturing challenges without functional benefit. Standard width traces for non-critical signals can be wider than minimum, providing margin that improves yield without cost penalty. Reserve minimum dimensions for traces where space constraints genuinely require them.
Systems where multiple tolerances stack—trace width variation plus dielectric thickness variation plus plating variation—can create total variation far exceeding individual tolerance budgets. Designers specifying tight impedance tolerances must account for all variation sources, not just trace width alone. Field solvers that incorporate manufacturing variation provide realistic predictions.
Fabrication processes vary across panel locations, between panels in a batch, and over time as equipment conditions change. Designs that work on one panel may fail on another if variation exceeds specification margins. Accounting for process variation—rather than assuming perfect uniformity—produces designs that yield consistently across production.
Trace width and spacing optimization in industrial Pcb Design balances electrical requirements against manufacturing realities. Understanding fabrication capabilities, tolerance effects, and yield drivers enables design specifications that achieve both electrical performance and reliable production. The goal isn't maximum density—it's appropriate density that fabricators can produce consistently at acceptable cost.
Systematic approaches to design rule development, documentation, and prototype validation ensure that trace specifications translate into successful manufacturing. Collaboration between design and manufacturing engineering—whether internal teams or with external partners—produces rules optimized for actual production conditions. These practices reduce manufacturing problems, improve yield, and ultimately deliver better products at lower cost.
As industrial applications demand increasing performance and density, trace width and spacing decisions become even more critical. Designers who master these fundamentals position themselves to tackle advanced challenges while maintaining the reliability that industrial applications demand.
Standard PCB fabrication typically achieves minimum trace widths of 0.15mm (6 mils) reliably. Advanced processes can achieve 0.1mm (4 mils) or tighter, but with higher cost and tighter process control requirements. The appropriate minimum depends on your fabrication partner's capabilities, your electrical requirements, and your tolerance for yield loss due to variation.
Narrower traces require more precise process control during etching, potentially reducing yield and increasing cost. Very fine traces may require advanced fabrication equipment that commands premium pricing. Using wider traces for non-critical routing reduces cost without functional impact. Reserve fine traces for applications that genuinely require them.
Voltage isolation requirements depend on operating voltage, environmental conditions, and applicable safety standards. General guidelines suggest approximately 0.1mm per volt for basic isolation in benign environments, but industrial applications may require more conservative spacing per applicable standards. Consult relevant safety standards and consider worst-case conditions when specifying spacing.
Specify target impedance, tolerance, measurement method, and test coupon requirements for controlled impedance traces. Work with your fabricator to determine achievable trace widths for your stack-up geometry. Account for manufacturing variation—trace width tolerance of plus or minus 10-20% translates to similar impedance variation. Specify tolerances that your application can tolerate.
Etching creates trace width variation as a fundamental part of the subtractive process. Copper thickness, etch chemistry concentration, spray pressure, and panel location all affect etch uniformity. Higher copper weights and smaller trace widths increase sensitivity to these factors, creating larger absolute variation. Plating adds additional copper that may not be uniform across the panel.
How to Avoid Costly Mistakes with Proper Industrial PCB DFMJuly/03/2026

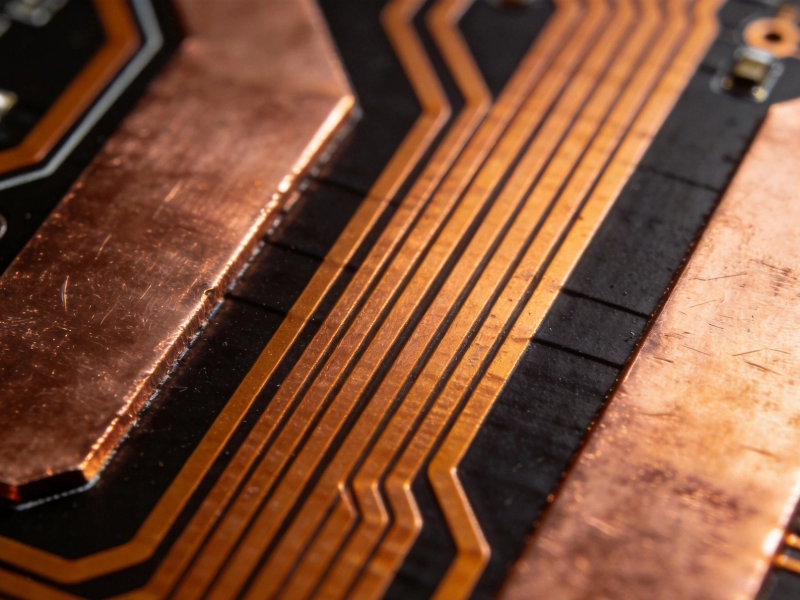

Design Rules for Heavy Copper Traces in Power ElectronicsJuly/27/2026
